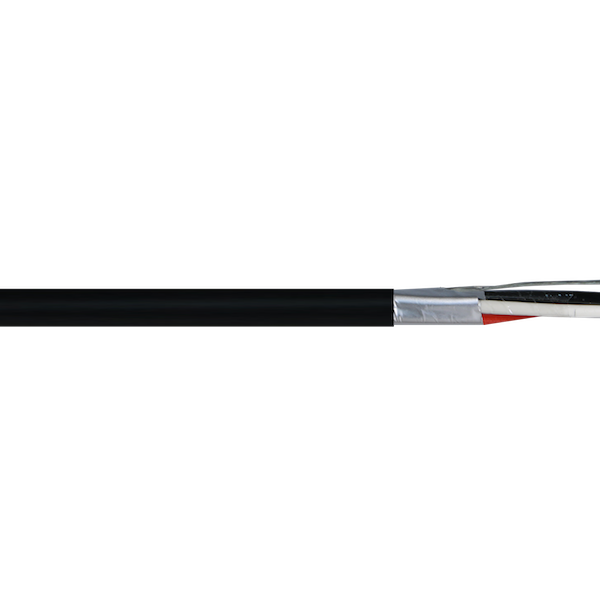

1 TRIPLE 0.5mm²

Standard Performance Multipair Overall Foil Screened Instrumentation Cable 110Vac 90°C

Keywords: Signal, Control


Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.


Signal and Controls Power control or signal/instrumentation cables on machines, conveying equipment or similar industrial applications.


  • UV stabilised

  • Flame retardant to IEC 60332-1

  • Heat, oil and chemical resistant


Conductor Annealed plain copper stranded (Class 2).

Insulation PVC V-90 HT.

Filler Non-hydroscopic polypropylene filler.

Screening Collective shield of aluminium/polyester foil complete with tinned copper drain wire (7 strands of 0.2mm²).

Sheath PVC 5V-90.


Operating Temperature Range Fixed -20°C to 90°C.

Maximum Conductor Temperature 90°C.

Rated Voltage 110VAC / 150VDC.

Minimum Bending Radius 10 x cable diameter.

Sheath Colour Black.

Standard Core Colours Each pair – 1 x White and 1 x Black conductor, with numbered cores (Triple – White/Black/Red).

Relevant Standards AS/NZS 1125, AS/NZS 3808, IEC 60332-1, ROHS Compliant.


E505/55- CS Certificate of Compliance

Product Code: E5301CS Categories: ,

No. of Cores x Size (mm²): 1 TRIPLE 0.5

Nearest AWG: 20

Approx. Stranding (No. of wires x mm²): 7/0.30

Approx. Overall Diameter (mm): 5.3

Approx. Weight (Kg/Km): 40
