CW070

1 x 70.0mm2


Standard Performance Fixed Building / Conduit Wire 0.6/1kV 90°C


Keywords: CW Series, Power, Switchboards, Panel, Wiring, Control, Earthing, Single Core



Click to download full series data sheet

Click to download Compliance Document

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Power Suitable for switchboards and panel wiring.

Control & Signals Suitable for control panel wiring.

Enclosures Wiring in metal / PVC conduit and other protective enclosures.

Earthing Wiring in housing and light commercial buildings. Also suitable for earth bonding.


PRODUCT FEATURES:



  • Flame retardant

  • UV stabilised

  • Tight bending radius

  • Metre marked 0.5mm to 25mm for better length control

  • Oil and chemical resistant (refer to Chemical Rating Chart)


CONSTRUCTION:


Conductor Annealed plain copper stranded (Class 2).

Insulation SPVC V-90HT.


CHARACTERISTICS:


Operating Temperature Range Fixed -5℃ to 90℃.

Maximum Conductor Temperature 105℃ (Current ratings are based on 30℃ air temp. See technical section for de-rating factors).

Rated Voltage Uo/U 0.6/1kV.

Max Operating Voltage Uo 0.7kV.

Minimum Bending Radius Fixed 7 x cable diameter.

Insulation Colours Code (use colour letters at end of code when ordering)

BK - Black

BL - Blue

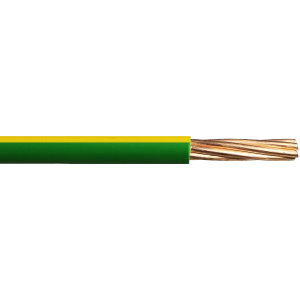

G/Y - Green/Yellow

RD - Red

WH - White. Other colours available on request.

Relevant Standards AS/NZS 5000.1, AS/NZS 3808, AS/NZS 3008, AS/NZS 1125, C E Directive 2006/95/EC, ROHS Compliant.


COMPLIANCE DOCUMENT:


Supplier Declaration of Conformity - SDoC AS/NZS 5000.1

Product Code: CW070 Categories: ,

No. of Cores x Size (mm²): 1 x 70.0

Approx Stranding (No. of wires x mm): 19/2.14

Approx. Overall Diameter (mm): 13.3

Approx. Weight (Kg/Km): 730

Nominal Amps @30°C Fixed Installation Single Phase:
Conduit in Air:
194
Unenclosed in Air:
246

Single Phase Volt Drop 90°C (Mv/Am): 0.710
