Cable guide roller – 90 degrees

Product Code: RUNP10153


Stock arriving early November.

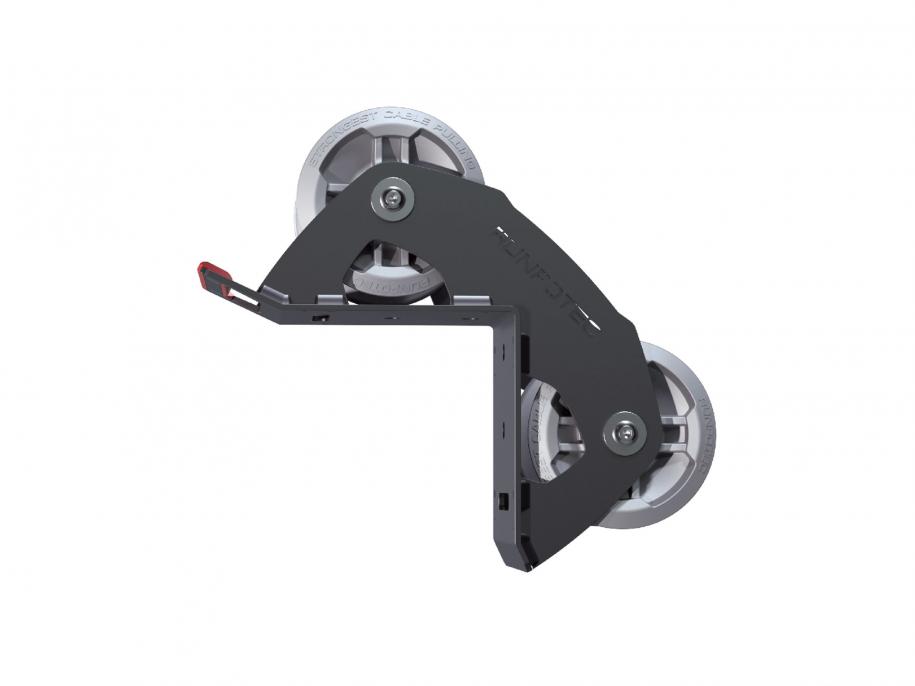

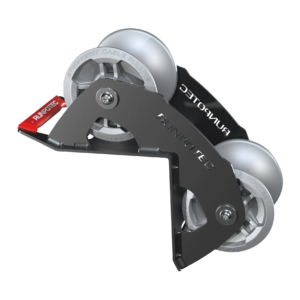

Runpotec Cable guide roller – 90 degrees



  • Aluminium heavy-duty rollers with stainless steel ball bearings
  • Robust metal frame
  • CDP and powder coated
  • Ergonomic aluminium carrying handle
  • Load capacity 4.500 kg

Product Code: RUNP10153



Cable guide roller – 90 degrees

for corners and edges – roller diameter Ø 130 mm

The cable guide roller – 90 degrees is ideally suited for use on various edges to pull cables gently around corners with the least possible resistance. It can be secured in place with a belt or screws via the assembly openings. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality, heavy-duty die-cast aluminium rollers with integrated stainless steel ball bearings and the sturdy powder-coated steel frame guarantee a long service life. Ergonomic aluminium handle – Load capacity 4500 kg
Optimum area of application: to pull cables gently and effortlessly around corners or edges.



Product Code: RUNP10153 Categories: , ,

Technical Data

Dimensions: L 360 x B 155 x H 140 mm
Weight: 6,47 kg
Material: Roller: Aluminium / Frame: Steel
Load bearing capacity: 4500 kg
Max. cable diameter: Ø 100 mm
Roll diameter: Ø 130 mm

Scope of supply

1 x Cable guide roller – 90 degrees

Download

RUNPOTEC-data-sheet-cable-guide-roller-90-degrees-RUNP10153
