BFX300

1 x 300.0mm2


Ultra Performance Flexible Rubber SDI Cable 0.6/1kV 110°C


Keywords: BFX, Single Core, Pumping, Welding, Automotive, Switchboards, Transformers





Click to download full series data sheet

Click to download Compliance Document

Clear

Quantity of item required. Cable is quoted in metres.

APPLICATIONS:


Chemtuff Used in applications that require a greater resistance to chemicals, solvents, oils and fats.

Power Switchboards, flexible droppers from busbars, transformers, load banks or other equipment requiring fixed or flexible cable.

Pumping Suitable for permanent submersion to 500 metres.

Welding Suitable for welding and electrode leads.

Generator Sets As leads for temporary power supplies.

Automotive Battery leads or jumpers, battery chargers, electric forklifts.

Audio Amplifiers and audio equipment where oxygen free copper wire is required.

Telecommunications Where finely stranded large cross section cables are required for minimal volt drop.


PRODUCT FEATURES:



  • High current capacity

  • Flame retardant

  • Water and moisture resistant

  • Very good behaviour to variations of outdoor temperature

  • Suitable for permanent submersion to 500 metres

  • UV stabilised

  • Heat, oil and chemical resistant (refer to Chemical Rating Chart)

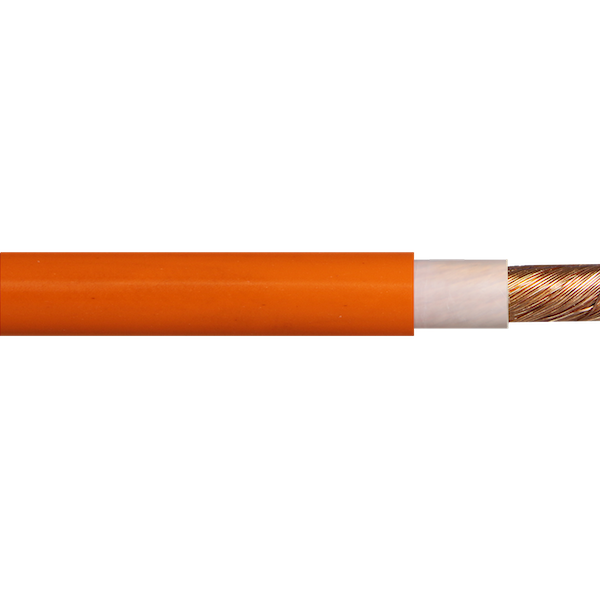

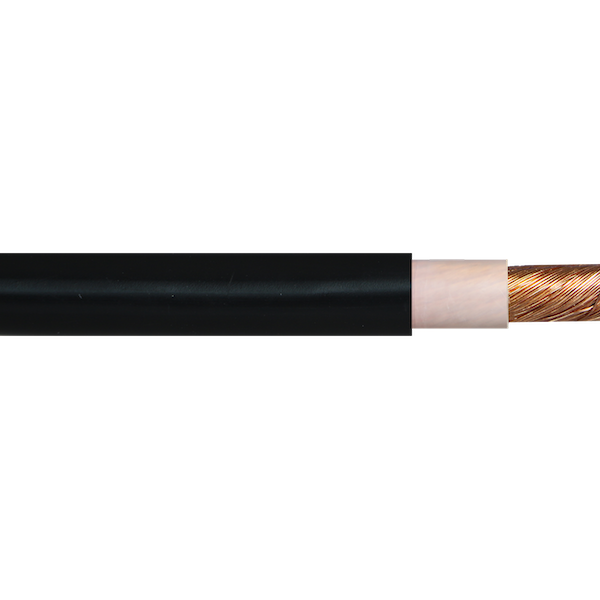

CONSTRUCTION:


Conductor Annealed plain copper stranded extreme flexibility (Class 5 & 6).

Insulation X-HF-110.

Sheath SER105


CHARACTERISTICS:


Operating Temperature Range Fixed -40℃ to 110/ Flexing -25℃ to 90℃.

Maximum Conductor Temperature 110℃ (Current ratings are based on 30℃ air temp. See technical section for de-rating factors).

Rated Voltage Uo/U 0.6/1kV. Max AC Operating Voltage Uo 0.7kV.

Minimum Bending Radius Fixed 4 x cable diameter / Flexing 6 x cable diameter.

Sheath Colour Orange, Black. (Red and Blue subject to availability).

Relevant Standards IEC 60332-1, AS/NZS 5000.1, AS/NZS 1125, AS/NZS 3808, AS/NZS 3008, ROHS Compliant.


COMPLIANCE DOCUMENT:


Supplier Declaration of Conformity - SDoC AZ/NZS 5000.1

No. of Cores x Size (mm²): 1 x 300.0

Approx Stranding (No. of wires x mm): 4001/0.30

Approx. Overall Diameter (mm): 31.1

Approx. Weight (Kg/Km): 3008

Nominal Amps un-enclosed protected from sun @ 30°C fixed installation 3 phase:
Spaced: 958
Spaced from surface:
 820
Touching: 764

3 Phase Volt Drop @ 50Hz / MAX. Conductor Temp:
90°C (Mv/Am): 0.202
110°C (Mv/Am): 0.227
