gwfwpmseries

APPLICATIONS:

Glanding For glanding circular steel wire armoured cables.

PRODUCT FEATURES:

  • Suitable for installation in explosive atmospheres
  • Weatherproof
  • Dust excluding ignition proof

OPTIONAL ACCESSORIES:

  • PVC shroud
  • Earth tag
  • Adaptors and reducers

CONSTRUCTION:

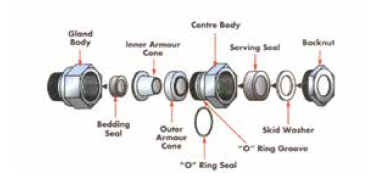

Material Bright nickel plated extruded brass gland body, bedding seal, inner armour cone, outer armour cone, O-ring, centre body, serving seal, skid washer and back nut (also available in stainless steel).
Seal Rubber.
O-Ring Rubber.

CHARACTERISTICS:

Operating Temperature Range -20°C to 80°C.
Protection Class IP66.
Relevant Standards AS/NZS2380.1-1989, AS/NZS2380.2-1991, AS/NZS1939-1990.
Area Classification Class 1, Zone 1, Group 1 & IIC, Class II.
Apparatus Group Exd, Exe, Exp DIP.
Certificate of Conformity ANZEx 07.3024.

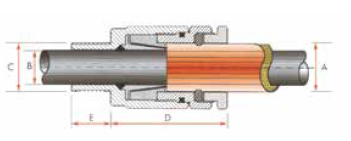

specification-13 specification-14

COMPLIANCE DOCUMENT:

GWFWPM Certificate of Compliance
